Pedal sensors

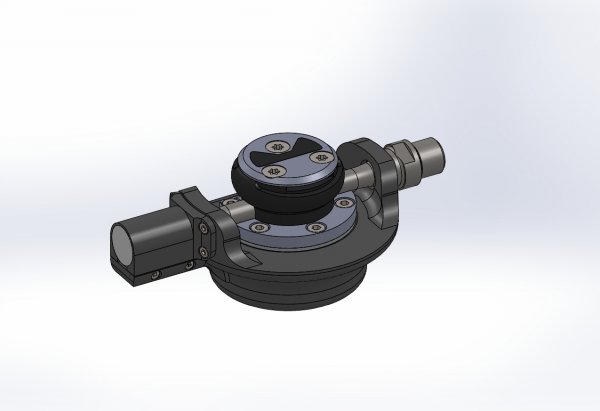

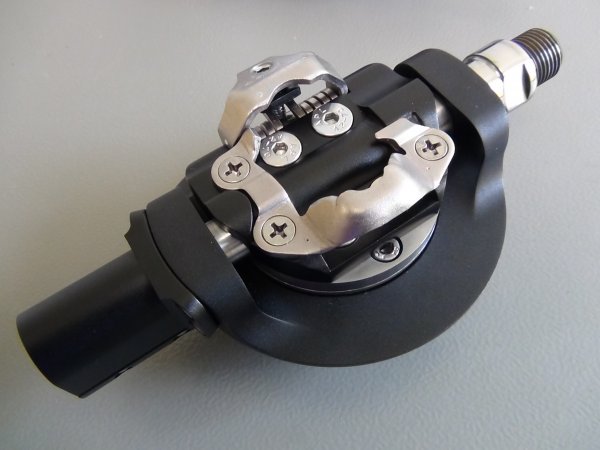

Resulting from researches in biomechanics, I-CrankSet offers the opportunity to measure effort generated by a cyclist thanks to a 6-component sensor integrated under the clipless pedal of a cycle (the biomechanical sensor can be adapted to any clipless pedal).

Location of the pedals:

• squares specific to optoelectronic systems
• encoders integrated into each pedal and a crank encoder



Choosing I-CrankSet version can be done according to:

• Bike type: road, mountain, BMX
• Maximal vertical force Fz

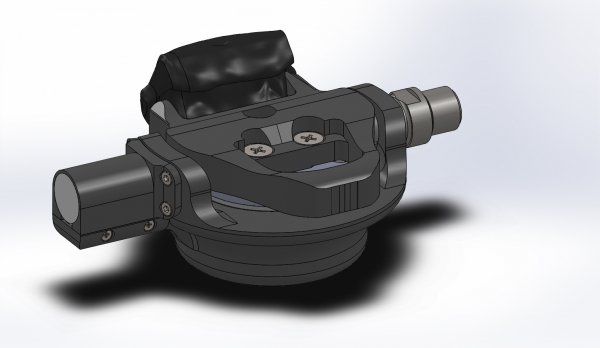

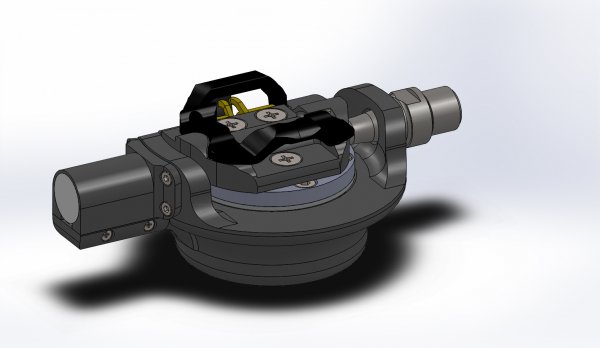

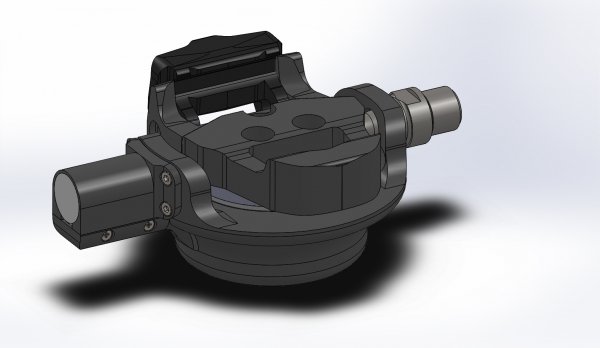

• Clipless system



I CrankSet software calculates all parameters that can inform the cyclist and her/his coach/operator on the quality of pedaling in terms of:

• Force: left and right pedal ,  Moment : left and right pedal ,  CoP : left and right pedal
• Angular position left pedal/right pedal/crank
• Crank speed
• Torque/Power/Work regarding the crank reference
• Efficiency index

Slideshow

Click to view the slideshow
(1)

To download

original_152918-i-crankset-system-2018.pdf
